MSI EdgeMesa N AI+ Mini PC, 20-Core, 128GB RAM, 4TB SSD, NVIDIA RTX Graphics
- NVIDIA RTX Spark Superchip: 20-core Grace CPU + 6144-core Blackwell RTX GPU
- Up to 1 petaFLOP FP4 AI Performance
- 128 GB LPDDR5X-9600 Unified Memory | 4 TB NVMe PCIe Gen5 SSD
- 4 × USB-C 20Gbps (3 with DisplayPort) + HDMI 2.1b, up to 4 Displays
- 10G LAN + Wi-Fi 7 + Bluetooth 5.4
- Windows 11 | 240W Adapter
- Compact 1.17 L Design (152 × 147 × 55 mm)
- 3-Year Warranty
We build the right tech for you
Bangalore's trusted tech store since 2010
- Lifetime in-store technical supportWalk in any time — no AMC, no fees. In-store service only.
- Free same-day delivery across Bangalore
- Price matchFind it cheaper at any authorised seller and we'll match it
- No-Cost EMI & Cash on Delivery
- Free laptop bagWith every laptop — no minimum spend
MSI EdgeMesa N AI+ 128GB 4TB NVIDIA RTX Spark Grace 20-Core AI Mini PC
The MSI EdgeMesa N AI+ 128GB 4TB NVIDIA RTX Spark Grace 20-Core AI Mini PC is a compact AI desktop built on NVIDIA’s RTX Spark Superchip, pairing a 20-core NVIDIA Grace CPU with a 6144-core Blackwell RTX GPU on 128 GB of LPDDR5X-9600 unified memory. MSI rates it at up to 1 petaFLOP of FP4 AI performance, and it comes with a 4 TB PCIe Gen5 SSD and Windows 11.
This is the top configuration: 128 GB of unified memory and a 4 TB SSD, the most MSI offers on this machine. It’s built for running AI on your own desk instead of the cloud: local LLMs and RAG, AI coding assistants, vision and voice models, plus pro visual work. Because the CPU and GPU share one memory pool, the GPU can work with much larger models than a graphics card with fixed VRAM would allow.

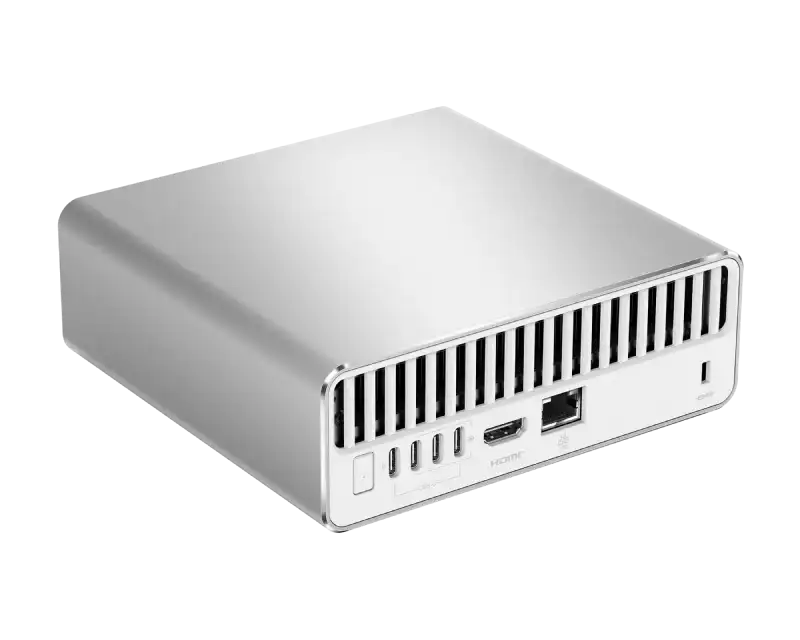

On the back you get four USB-C ports at 20 Gbps (three carry DisplayPort 1.4, one takes USB-C power input), HDMI 2.1b for 4K at 120 Hz or 8K at 60 Hz, 10-gigabit LAN, Wi-Fi 7 and Bluetooth 5.4. It can drive up to four monitors. There are no USB-A ports, so keep a USB-C hub for older keyboards and drives. The whole unit is 152 × 147 × 55 mm and runs off a 240 W adapter, with fan and vapor-chamber cooling.
It carries a 3-year warranty. Register the serial number at register.msi.com after purchase. You can see it and pick it up at our Koramangala store, open Mon–Sun 10:30 AM to 9 PM. Call +91 9739221133.
Technical Specifications
| Processor & AI | |
| Platform | NVIDIA RTX Spark Superchip (N1X) |
| CPU | NVIDIA Grace 20-core CPU |
| GPU | NVIDIA Blackwell RTX GPU, 6144 cores |
| AI Performance | Up to 1 petaFLOP FP4 |
| Cooling | Fan cooler with vapor chamber |
| Memory & Storage | |
| Memory | 128 GB LPDDR5X-9600 unified memory (shared by CPU and GPU) |
| Max Memory | 128 GB (top configuration) |
| Storage | 4 TB NVMe M.2 SSD (PCIe Gen5 x4) |
| Storage Slots | 1 × M.2 NVMe PCIe Gen5 x4 (in use), up to 4 TB |
| Connectivity & Ports | |
| USB-C | 4 × USB 3.2 Gen 2×2 Type-C (20 Gbps): 3 with DisplayPort 1.4 Alt Mode, 1 for USB-C power (PD) input |
| HDMI | 1 × HDMI 2.1b (4K @ 120 Hz / 8K @ 60 Hz) |
| Displays | Up to 4 monitors |
| LAN | 1 × RJ45 10 Gigabit Ethernet (Realtek RTL8127-CG) |
| Wireless | Wi-Fi 7 (AzureWave AW-EM637) + Bluetooth 5.4 |
| Other | Clear BIOS button, Kensington lock slot |
| Software | |
| Operating System | Windows 11 (Home or Pro, depends on unit) |
| Power & Environment | |
| Power Supply | 240 W external AC adapter |
| Noise | 28 dB idle / 32 dB full load (MSI figures) |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | -20°C to 60°C |
| Design | |
| Dimensions (W × D × H) | 152 × 147 × 55 mm |
| Volume | 1.17 litres |
| Other Details | |
| Series | MSI EdgeMesa N AI+ (Edge AI PC) |
| Model | MSI EdgeMesa N AI+ 128GB 4TB NVIDIA RTX Spark Grace 20-Core AI Mini PC |
| Country of Origin | China |
| Warranty | 3 Years |
| Manufactured By | Micro-Star International Co., Ltd., No. 88, East Qianjin Road, Kunshan City, Jiangsu, China |
| Packed By | Micro-Star International Co., Ltd., No. 88, East Qianjin Road, Kunshan City, Jiangsu, China |
| Imported By (any one of) | 1. Acro Engineering Company, C-87 DDA Sheds, Okhla Industrial Area, Phase-1, New Delhi – 110020 2. Redington (India) Limited, “Redington House”, Centre Point, Plot Nos. 8 & 11 (SP), Thiru. Vi. Ka. Industrial Estate, Chennai – 600032 3. Ingram Micro India Private Limited, 5th Floor, Empire Plaza, Building A, LBS Marg, Vikhroli West, Mumbai – 400083 4. World Peace International (India) Private Limited, Building No. 26, 2nd Floor, Okhla Phase III, New Delhi – 110020 |
| MSI Support | 011-4748 4000 (Mon–Sat, 8:30 AM – 5:30 PM) |
| [email protected] |
Product details last updated:
| Desktop Series | MSI EdgeMesa N AI+ |
|---|---|
| Processor Brand | NVIDIA |
| Desktop Processor | NVIDIA Grace 20-core (RTX Spark Superchip) |
| Desktop RAM | 128 GB LPDDR5X |
| Desktop Storage | 4 TB SSD |
| Desktop Graphics | NVIDIA Blackwell RTX (6144 cores, Integrated) |
| Software | Windows 11 |
| Desktop Category | Mini PC |
| Color | Black |
| Warranty | 3 Years |
Frequently Asked Questions
What makes the MSI EdgeMesa N AI+ different from a standard desktop PC?
This mini PC uses the NVIDIA Grace 20-core CPU combined with a Blackwell RTX GPU in one superchip. It is designed specifically for AI workloads, offering up to 1 petaFLOP of FP4 AI performance. It fits all this power into a compact 1.17-liter chassis, which is much smaller than traditional tower desktops.
Can the MSI EdgeMesa N AI+ handle heavy professional AI tasks?
With 128 GB of LPDDR5X unified memory and the Blackwell RTX GPU, this machine is built for intensive AI development and processing. Our customers in Bangalore often use it for local LLM inference and data-heavy research that requires high-speed memory access and significant GPU core counts.
How many monitors can I connect to this mini PC?
You can connect up to 4 displays simultaneously. The device features 4 USB-C 20Gbps ports, with 3 of them supporting DisplayPort output, plus an additional HDMI 2.1b port. This setup is ideal for multi-monitor workstations where you need to track complex data sets or AI model outputs.
What is the current price of the MSI EdgeMesa N AI+ at YourShoppy?
You can purchase the MSI EdgeMesa N AI+ at our Bangalore store for . We currently have this model In stock. Please check our website or visit our showroom to confirm the latest stock levels before heading over.
Does the MSI EdgeMesa N AI+ come with a manufacturer warranty?
Yes, this unit includes a 3-year warranty provided by MSI. This coverage protects your investment against hardware issues during the standard usage period. If you encounter any technical difficulties, our team at YourShoppy can assist you with the manufacturer support process.
Is the storage on the MSI EdgeMesa N AI+ upgradeable?
The system comes equipped with a 4 TB NVMe PCIe Gen5 SSD, which provides high-speed data access for large AI datasets. While the internal storage is substantial, the compact 1.17-liter design means internal upgrades are limited. Most users find the included 4 TB capacity sufficient for professional AI development tasks.
How does the MSI EdgeMesa N AI+ compare to a gaming PC for AI work?
While gaming PCs use standard consumer CPUs and GPUs, the MSI EdgeMesa N AI+ uses the NVIDIA Grace-Blackwell architecture. This unified memory design allows the GPU to access the 128 GB of RAM directly, which is far more efficient for AI model training than the separate VRAM found in typical gaming graphics cards.
