Asus Pro WS WRX90E-SAGE SE Workstation Motherboard, sTR5 Socket, EEB Form Factor
- AMD Socket sTR5 — Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series
- AMD WRX90 Chipset | EEB Form Factor (12" × 13")
- 8 × DDR5 ECC Registered (RDIMM), 8-Channel
- 7 × PCIe® 5.0 x16 Slots | 32+3+3+3 Power Stages
- 4 × M.2 (PCIe® 5.0 x4) + 2 × SlimSAS + 4 × SATA 6Gb/s
- Intel® Dual 10Gb Ethernet + 1Gb Management LAN (AST2600 BMC/IPMI)
- 2 × USB4® 40Gbps Type-C | Realtek ALC1220P Audio
- PCIe Q-Release Slim | ASUS Control Center Express
- 3-Year Warranty
Email when stock available
We build the right tech for you
Bangalore's trusted tech store since 2010
- Lifetime in-store technical supportWalk in any time — no AMC, no fees. In-store service only.
- Authorised dealerSealed box, full manufacturer warranty, GST invoice
- Free same-day delivery across Bangalore
- Price matchFind it cheaper at any authorised seller and we'll match it
- No-Cost EMI & Cash on Delivery
- Free laptop bagWith every laptop — no minimum spend

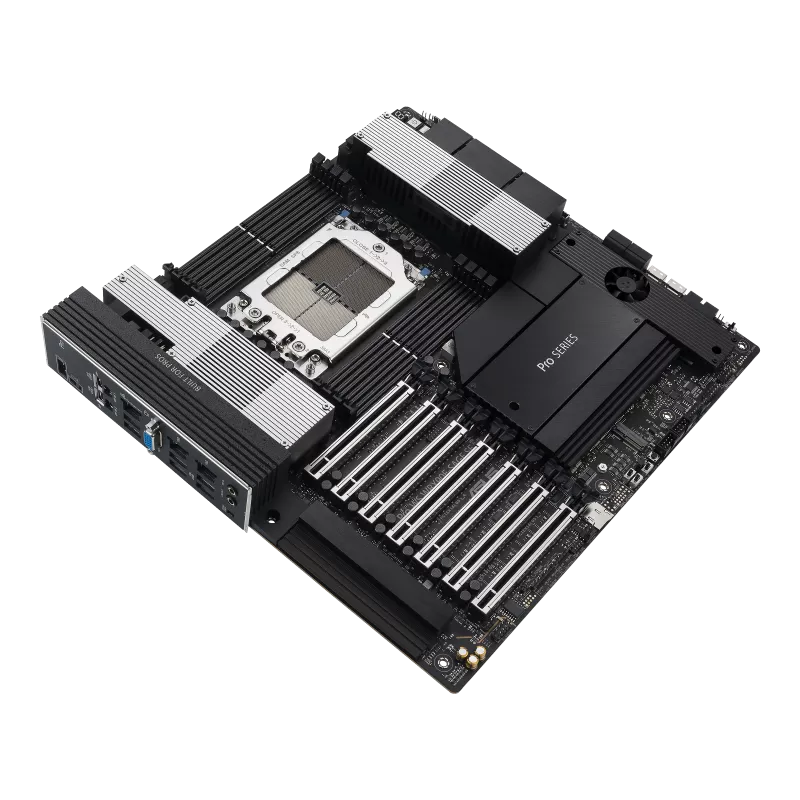

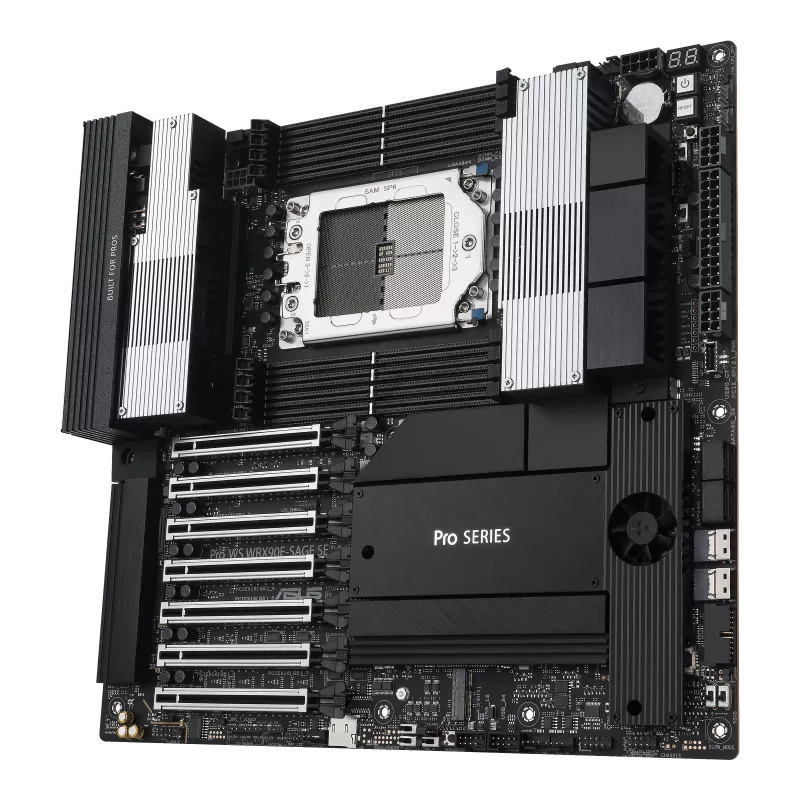

Asus Pro WS WRX90E-SAGE SE sTR5 WRX90 EEB Workstation Motherboard
The ASUS Pro WS WRX90E-SAGE SE is a supreme single-socket workstation motherboard built on the AMD Socket sTR5 / WRX90 platform for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series processors. It delivers seven PCIe® 5.0 x16 slots, 32+3+3+3 power stages with CPU and memory overclocking, eight DDR5 ECC Registered DIMM slots in an 8-channel architecture, four PCIe® 5.0 M.2 slots plus dual SlimSAS and four SATA ports, Intel® dual 10 Gb Ethernet with a dedicated management LAN, two USB4® 40Gbps Type-C® ports and the tool-free PCIe Q-Release Slim mechanism — all in an EEB chassis engineered for 24/7 reliability. An onboard AST2600 BMC with IPMI and ASUS Control Center Express brings server-grade remote management to the workstation. Part of the ASUS Pro WS workstation motherboard line.
Technical Specifications
| Platform | |
| CPU Support | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series |
| Chipset | AMD WRX90 |
| Memory | |
| Memory | 8 × DIMM, DDR5, ECC Registered (RDIMM), 8-channel architecture |
| Expansion | |
| PCIe Slots | 6 × PCIe 5.0 x16 + 1 × PCIe 5.0 x16 (x8 mode) |
| Storage | |
| M.2 | 4 × M.2 (Key M), PCIe 5.0 x4 — M.2_1/2 type 2242–22110, M.2_3/4 type 2242–2280 |
| SlimSAS / SATA | 2 × SlimSAS (PCIe 4.0 x4 NVMe) + 4 × SATA 6Gb/s |
| RAID | AMD RAIDXpert2 — PCIe RAID 0/1/5/10 & SATA RAID 0/1/5/10 |
| Networking & Graphics Output | |
| Ethernet | Intel® dual 10Gb Ethernet + Realtek 1Gb management LAN (for AST2600); ASUS LANGuard |
| Display Output | 2 × USB4® (40Gbps) Type-C® display out, 1 × VGA, 2 × mini DisplayPort IN |
| USB & Audio | |

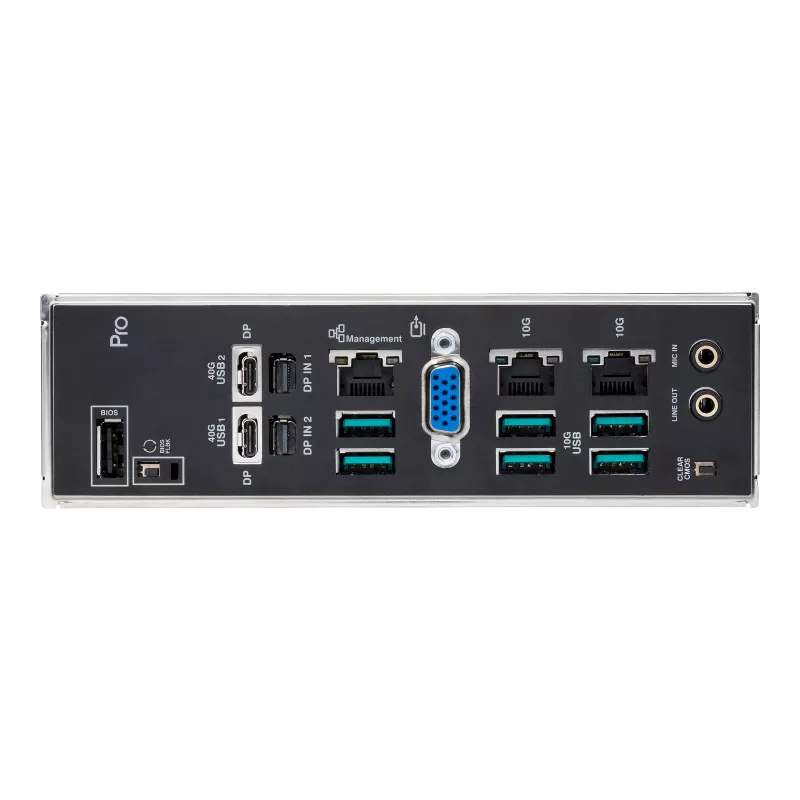

| Rear USB | 2 × USB4® 40Gbps Type-C, 6 × USB 10Gbps Type-A, 1 × USB 2.0 Type-A |
| Front USB | 1 × USB 20Gbps Type-C connector, 1 × USB 5Gbps header (2 ports), 2 × USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P High Definition Audio CODEC (up to 5.1 surround, 32-bit/192 kHz) |
| Management & BIOS | |
| BMC / Remote Mgmt | ASPEED AST2600 BMC with IPMI; ASUS Control Center Express (ACCE) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS (text-based); BIOS FlashBack™, CrashFree BIOS 3 |
| Manageability | WOL by PME, PXE (UEFI mode) |
| Key Features | |
| Highlights | 32+3+3+3 power stages, ASUS 5X Protection III, PCIe Q-Release Slim (SafeSlot), Q-Code, Q-LED, VRM/M.2 active-fan thermal design, ProCool II, BIOS FlashBack™ |
| General | |
| Form Factor | EEB — 12″ × 13″ (30.5 cm × 33 cm) |
| Operating System | Windows® 11 / Windows® 10 64-bit |
| Series / Model | ASUS Pro WS / Pro WS WRX90E-SAGE SE |
| In the Box | Motherboard, 2× PCIe 8-pin-to-CPU power cables, 1× 24-pin Y power cable, 2× mini DisplayPort cables, 4× SATA 6Gb/s cables, thermistor cable pack, Q-connector, M.2 Q-Latch package, M.2 rubber/screw packages, ACC Express activation key card, quick start guide |
| Country of Origin | China (confirm on box) |
| Warranty | 3-Year Warranty (confirm term) |
| Imported & Marketed By | ASUS India Private Limited, 402, Supreme Chambers, 17/18, Shah Industrial Estate, Veera Desai Road, Andheri (West), Mumbai – 400053, Maharashtra, India |
| Business Support | 1800 2678 901 (commercial/workstation line) |
| [email protected] |
Product details last updated:
| Component Type | Motherboard |
|---|---|
| Series | ASUS Pro WS |
| Chipset | AMD WRX90 |
| Socket | sTR5 |
| CPU Support | AMD Ryzen Threadripper PRO 9000 & 7000 WX |
| Memory Support | 8 × DDR5 ECC RDIMM, 8-channel |
| Form Factor | EEB (12″ × 13″) |
| PCIe Slots | 7 × PCIe 5.0 x16 |
| M.2 Slots | 4 × PCIe 5.0 x4 |
| LAN | Dual 10 GbE + 1 GbE management |
| Warranty | 3 Years |
Frequently Asked Questions
Is the Asus Pro WS WRX90E-SAGE SE compatible with my Threadripper PRO 7000 series CPU?
This motherboard is specifically designed for the AMD Ryzen Threadripper PRO 9000 and 7000 WX-Series processors. It uses the sTR5 socket and the WRX90 chipset, making it a direct fit for these high-performance workstation chips. You can find it at YourShoppy for .
What type of memory do I need for this workstation motherboard?
You must use 8-channel DDR5 ECC Registered DIMMs (RDIMM) with this board. It features 8 slots, allowing you to maximize memory bandwidth for heavy multitasking or rendering tasks. Ensure you are using ECC RDIMMs, as standard desktop memory will not function with this workstation platform.
Will the Asus Pro WS WRX90E-SAGE SE fit inside a standard ATX computer case?
This board uses the EEB form factor, which measures 12 inches by 13 inches. It is larger than a standard ATX motherboard. You will need a full-tower chassis that specifically supports EEB mounting holes to house this board properly. Check your case specifications before purchasing at .
How many PCIe 5.0 devices can I connect to this motherboard?
You have access to 7 PCIe 5.0 x16 slots, which is ideal for multi-GPU setups or high-speed storage arrays. Additionally, there are 4 M.2 slots that also support PCIe 5.0 x4 speeds. This provides massive expansion potential for professional-grade hardware configurations.
Does the Asus Pro WS WRX90E-SAGE SE include networking features for server management?
Yes, it includes dual 10 GbE ports for fast data transfers and an additional 1 GbE management LAN port. This management port utilizes the AST2600 BMC/IPMI, which allows for remote hardware monitoring and control, a common requirement for professional workstation environments in Bangalore.
What is the warranty coverage for this motherboard at YourShoppy?
We provide a 3-year warranty on this Asus Pro WS motherboard. This covers manufacturing defects and hardware issues under normal operating conditions. You can check the current Out of stock and order it from our Bangalore store at .
How does this board compare to standard consumer motherboards for rendering?
Unlike consumer boards, this workstation model supports 8-channel memory and massive PCIe lane counts for professional GPUs. It is built for 24/7 stability with 32+3+3+3 power stages. If you are building a professional rendering or simulation rig, this platform offers the reliability and bandwidth that consumer boards lack.
